Elevator Controller
Elevator Controller

Elevator is a public place that allow people reach the different floors of the property.

The regular elevator is an open entironment which allows anybody to go any floors.
This is not good for security considerations.
Elevator become a main entrance that people could go to the rooms which no business with him.
Theft may occur frequently because nothing could block a theft happens.

Xeeder elevator controller offers a solution block the theft out of elevator.

Elevator controller is a product that powered by XEEDER HOTEL LOCK SYSTEM.
It is one branch of it which requires running the keycards comes from XEEDER HOTEL LOCK SYSTEM only.
That means if somebody have no keycard(he is not the guest of hotel), he will not available push the floor button.
And also, each guest can reach only the floor his room exist. Such as 505 guest can only reach 5 floor but not 6

When the keycard been read, the floor information will be sent to the elevator control and the corresponding floor

buttonis activated and push available.
Guest can not access to other floors because the button not working at all.
The master card holder could access to any floor after read his card.


  • Upgrade your hotel security level. Elevator could not be use by anyone.
  • Make guest feeling better
  • Xeeder Hotel lock system required
  • Each elevator 1 kit. Reader install on the wall, controller place on the ceiling


  • Model: CA112-L
  • Power: DC12V
  • Communication: 13.56MHz RFID(with keycard)/wiegand (with elevator controller)
  • Dimension: 118mm×77mm×20mm
  • Weight: 208g
  • RED cable: 12VDC
  • BLACK cable: GND
  • GREEN cable: DATA0
  • WHITE cable: DATA1

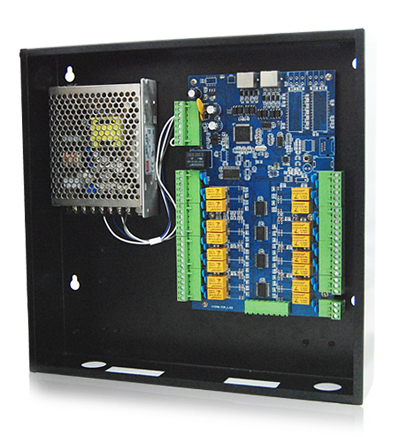

  • Model: C4208-TCP
  • Communication: Out put switch-signal
  • Dimension: 320mm×310mm×85mm(with box)
  • Working Tempreature: 0-70℃
  • Working Humidity: 15~85%RH
  • Static current: < 30uA
  • Working current: < 150mA
  • Software: XEEDER Hotel lock system™
  • Gross Weight: 3.5KG
