     Product

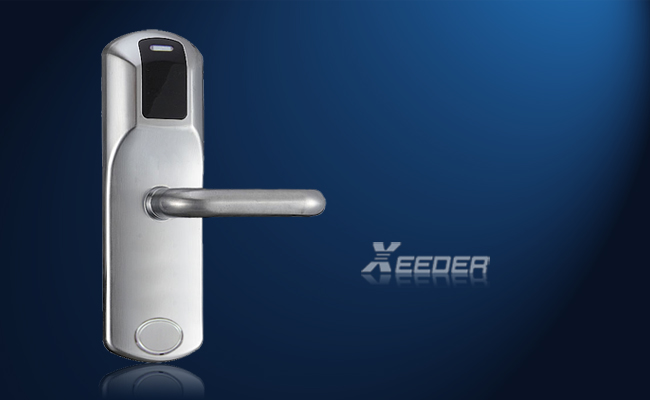

L7208-M1 hotel lock
L7208-M1 hotel lock





BENEFITS

  • Chrome-plated wire drawing
  • RFID MIFARE® technology,100,000 times write life for keycard, contactless reading keycard
  • ANSI mortise
  • Free-engage while locking
  • Powered by AA battery,easy replace new
  • Openings 20,000 times for one new battery pack
  • Audit trail records the latest 800 lock transactions.
  • Low Battery Voltage warning(beep and red light)
  • Passage mode activate by passage card for meeting case
  • Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
  • Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
  • Xeeder Hotel Lock System™ required
  • 40mm-50mm thickness door
  • Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

SPECIFICATIONS

  • Model: L728M1
  • Power: LR6 (AA)battery x 4pcs
  • Low power alarm voltage:4.8V
  • Communication: 13.56MHz RFID(with keycard)/infrared (with LMA or WDR)
  • Card support: MIFARE® S50 plus S70
  • Working Distance: 45mm Max
  • Working Tempreature: 0-60℃
  • Working Humidity: 15~85%RH
  • Static current: < 30uA
  • Working current: < 150mA
  • Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
  • Software: XEEDER Hotel lock system™
  • Gross Weight: 3.1KG
  • Package: 10pcs/Carton at 74.0X42.0X32.0CM
  • Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
    (no battery included, no card)

USEAGE

  • Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
  • Master card:Hold by housekeeping to access to all rooms of hotels
  • Floor card: Hold by clean staff to enter the rooms in one floor.
  • Building card: Hold by manager to enter the rooms in one building
  • Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
  • Emergency card: Enter the all rooms
