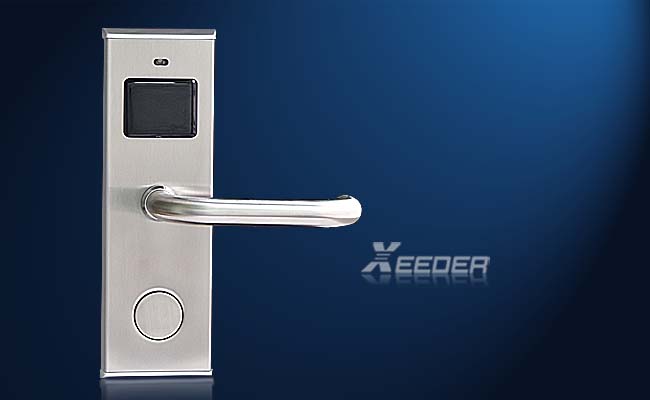

L5215-M1 hotel lock

BENEFITS

Finish: Stainless steel wire drawing
Stainless steel panel and handle
RFID MIFARE® technology,100,000 times write life for keycard, contactless reading keycard
Euro mortise
Openings 20,000 times for one new battery pack
Auto deadbolt
Free-engage handle while locking
Passage mode activate by passage card for meeting case
Do not disturb(DND) function for hotels:While thumb turn is on from inside, the lock will refuse the keycard outside by show red light
Panic release function: the deadbolt and latch are automatically retracted by inside handle shaking to easy egress when emergency happens
Xeeder Hotel Lock System™ required
30mm-35mm thickness door
Each Xeeder hotel lock equipped double clock, control the guests check-in and departure time accurately, Make your management of rooms easily.

SPECIFICATIONS

Model: L5215M1
Power: LR6 (AA)battery x 4pcs
Low power alarm voltage:4.8V
Communication: 13.56MHz RFID（with keycard)/infrared (with LMA or WDR)
Card support: MIFARE® S50 plus S70
Working Distance: 45mm Max
Working Tempreature: 0-60℃
Working Humidity: 15~85%RH
Static current: < 30uA
Working current: < 150mA
Memory: 800 Transactions include Time/Date/Card ID/Card type/Room ID
Software: XEEDER Hotel lock system™
Gross Weight: 2.3KG
Package: 6pcs/Carton at 50.0X42.0X33.0CM
Content: Front/Back panel,mortise,cylinder,keyx2,battery-pack,manual/Strike
(no battery included, no card)

USEAGE

Guest card: Reception complete program Guest card by give a begin and expiry date for a room(rooms). Guest access room by read this card on lock
Master card:Hold by housekeeping to access to all rooms of hotels
Floor card: Hold by clean staff to enter the rooms in one floor.
Building card: Hold by manager to enter the rooms in one building
Passage card: Once this card been read on one door, this door could be acceess by without reading keycard
Emergency card: Enter the all rooms
